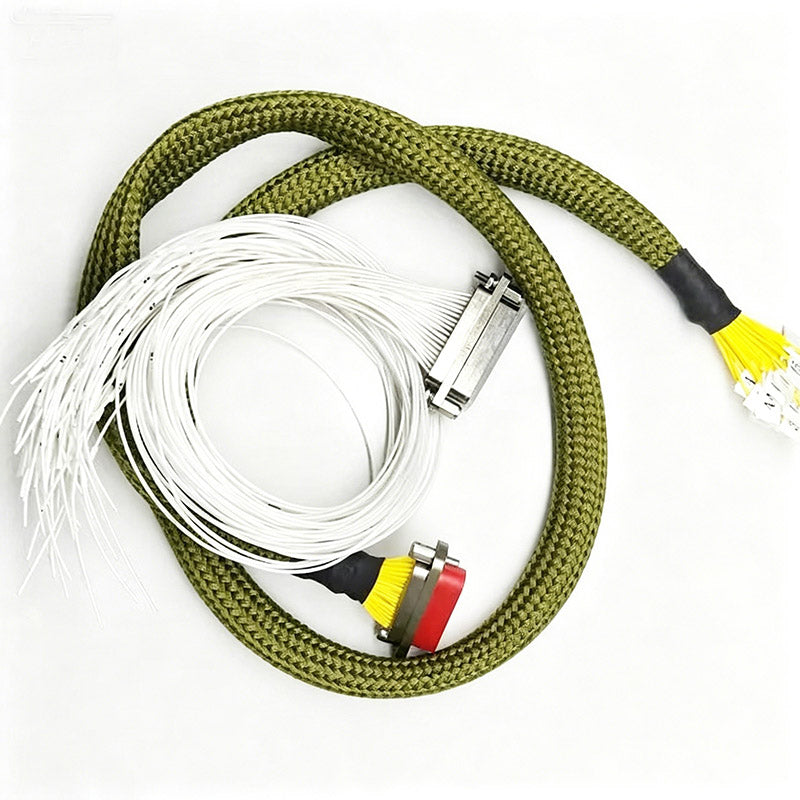

J30J Series Crimp Extended Micro Rectangular Electrical Connector

Product Introduction

This J30J micro rectangular connector complies with GJB2446 standard (equivalent to US specification MIL-C-83513), and is interchangeable with American MDM series and other domestic equivalent connectors. Optimized based on classic J30 series structure, this connector is equipped with aluminum alloy housing and various aluminum alloy cable clamps. It adopts twisted multi-strand pins (twisted contact pins), with seven independent contact points per single contact terminal to greatly improve connection stability and anti-vibration performance.

Key Technical Parameters

• Grid Pitch: 1.27mm, high-density layout, compact dimension & lightweight structure
• Available Pin Counts: 9,15,21,25,31,37,51,66,74,100 pins
• Applicable Wire Size: 0.07 ~ 0.15mm² conductor cross-section
• Custom Service: Tail cable wiring layout can be customized per client’s requirements
• Locking Fitting: Standard pre-assembled locking components; specify in order contract if locking parts are not needed

Application Range

Suitable for industrial control equipment, onboard instruments, automated detection modules, precision servo equipment, communication devices and various compact electronic systems that require stable connection under vibration working conditions.

Standard Compliance

Fully conforms to specification requirements of GJB2446 General Specification for Shell Positioning Ultra-Small Rectangular Electrical Connectors.
